Infrared Touch Probe
infrared touch Probe in Machine Tool for component setting and inspection
A economic and stability probing solution to set a workpiece and inspect product dimensions on machine tools , best selling touch probe in china
Brand: SILVERCNC
Port: Shenzhen China
Models: SOMP40
Logo printing ： Silvercnc/None/Customized
Certification： ISO9001
Signal transmission: infrared
Repeatability: 1um (2σ)
Operating range: 5m
battery life: >360 days
Warranty: 1 year
Shipping: DHL/TNT/UPS, 3-7 days
Infrared touch probe SOMP40 Kits packaging
Check SilverCNC SOMP40 touch probe unboxing video,
Silvercnc spindle touch probe include probe kit, signial reciever, stylus, tool holder, pull stud, span and so on,
SOMP40 can match various types of tool holders, HSK, SK, ISO are options, determined by the machine tool spindle models.
| Type | Model | Quantity（PCS） |
| probe kit | SOMP40 | 1 |
| tool holder | BT30/40/50 SK, CAT, HSK are optional | 1 |

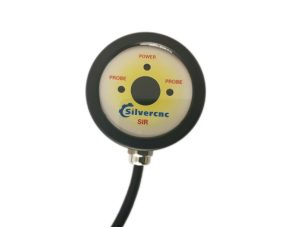

| receiver | standard | 1 |
| pull stud | BT30/40/50 Depend on the tool holder | 1 |
| Magnet base | standard | 1 |
| battery | LS14250 | 2 |
| stylus | 4 * 50 Ruby ceramic | 1 |
SOMP40 probe Application

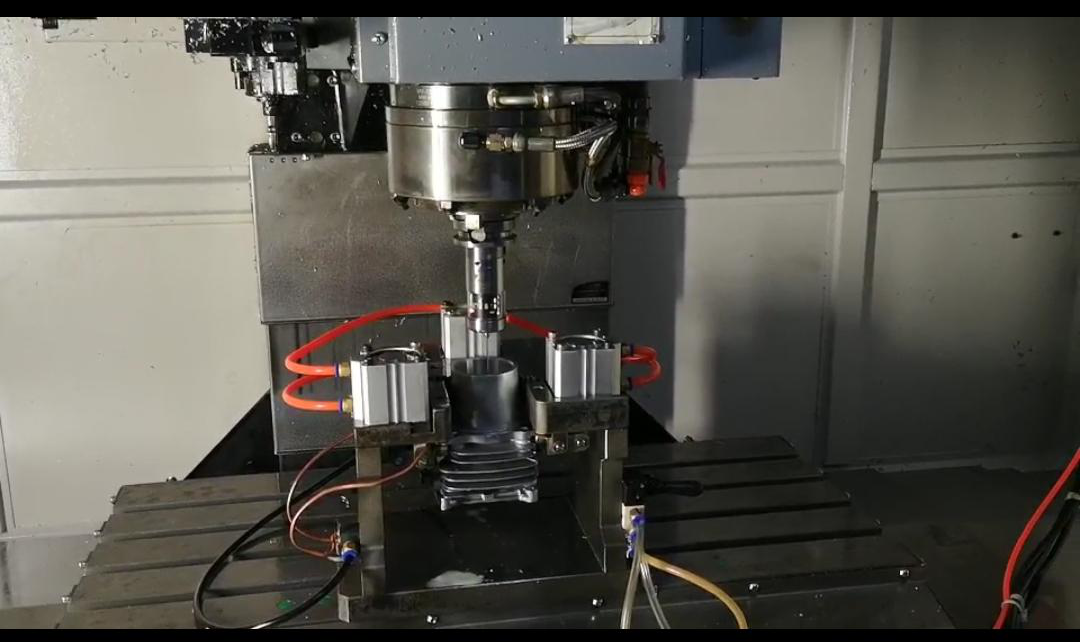

Before machining, the probe can set workpiece coordinates to reduce incoming material errors,

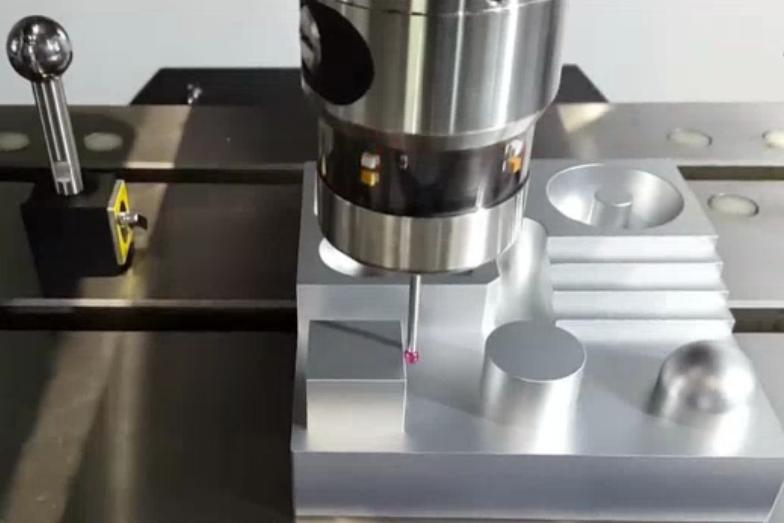

The probe can measurement the part planeness , distances, angles, hole diameter and so on,
Improved quality control, increased efficiency, reduce the machining cost.
SilverCNC SOMP40 touch probe specification
SOMP40 uses pulse signal triggering, not level signal
Long battery life, up to one year of normal use
If remote use of the probe is required, please use a radio wave probe SRMP40
| Model | SOMP40 | |
| Unidirectional repeatability Use standard 50mm probe at 600mm/min speed | 1um (2σ) | |
| Sense directions | ±X,±Y,+Z | |

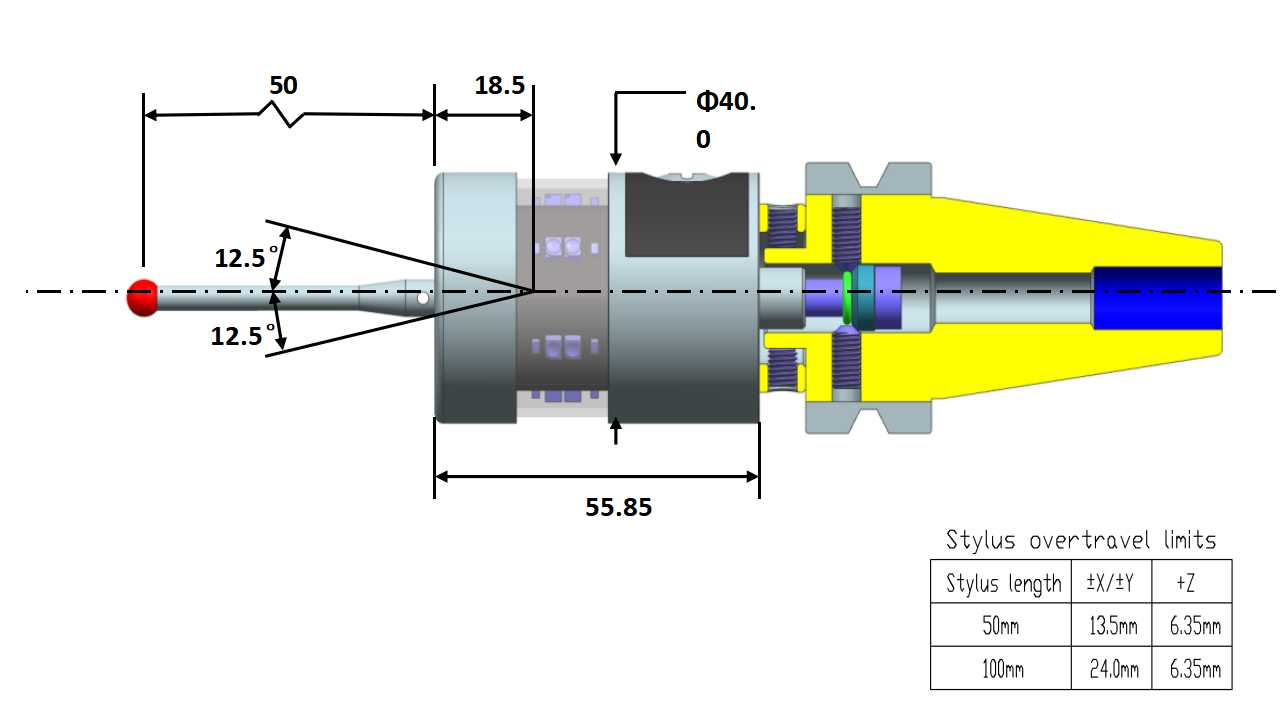

| Stylus trigger force Use standard 50mm probe | XY plane 0.4 – 0.8N | Z direction 4.0N |
| Trigger protection trip | XY plane +/-15° | Z direction 6.35mm |
| Signal transmission method | infrared transmission | |
| Operating range | 5m | |
| Trigger life | >10 Million times | |
| Transmission angle | 360 ° along the probe axis | |
| Transmission on/off style | Pulse triggered signal | |
| Weight without shank (including batteries) | 280g | |
| type of battery | 2x lithium battery 14250 | |
| battery life | Standby | >600 days |
| 5% use | >540 days | |
| continue use | >360 days | |
| Sealing | IP68 | |
| Operating temperature | 0-60℃ | |
Features
Application
Marco and hardware
Features
CNC infrared touch probe china manufacturer highlights:
Perfect mechanical structure design
(1) Silvercnc touch probe use a proven technology -kinematic resistive principle that can stably operate for long time,
(2) it can realize extremely precise measurements under standard 50mm probe styli at 600mm/min speed,
(3) The balls and rods of the probe adopt special process to ensure 10 million times life, to ensure excellent stability
(4)we research and development a micro swing autonomous reset technology independent , successfully solved the problem of poor stability and unstable repeated . now silvercnc probe have excellent stability performance, high repeated positioning accuracy
Reliable signal transmission
(1) Silvercnc use coded signals optimized optical communication technology, to sure that the signal transmission is stable, response speed fast, and don’t lose signals.
(2) The touch probe applies dual channel technology, through the remote control frequency change, perfect solve the problem of mutual interference of infrared probes in the industry, Innovation within probing industry.
Long battery life
(1) The probe adopts the multi-threshold power consumption control technology, which greatly reduces the product power consumption, and by optimizing the chip design and circuit design, improves the battery life further.
(2) Battery life: silvercnc touch probe life is long, continue use >360 days, 5% use >540 days, Standby >600 days,Battery life is much higher than other brands
Easy to install
(1) The installation of the probe receiver is a troublesome job, which requires drilling holes in the machine tool for fixing.
(2) We designed a magnetic mounting base that allows the receiver to be mounted on the base and then attached together to the sheet metal of the machine tool, reducing installation difficulty.
Application
Measurement of standard

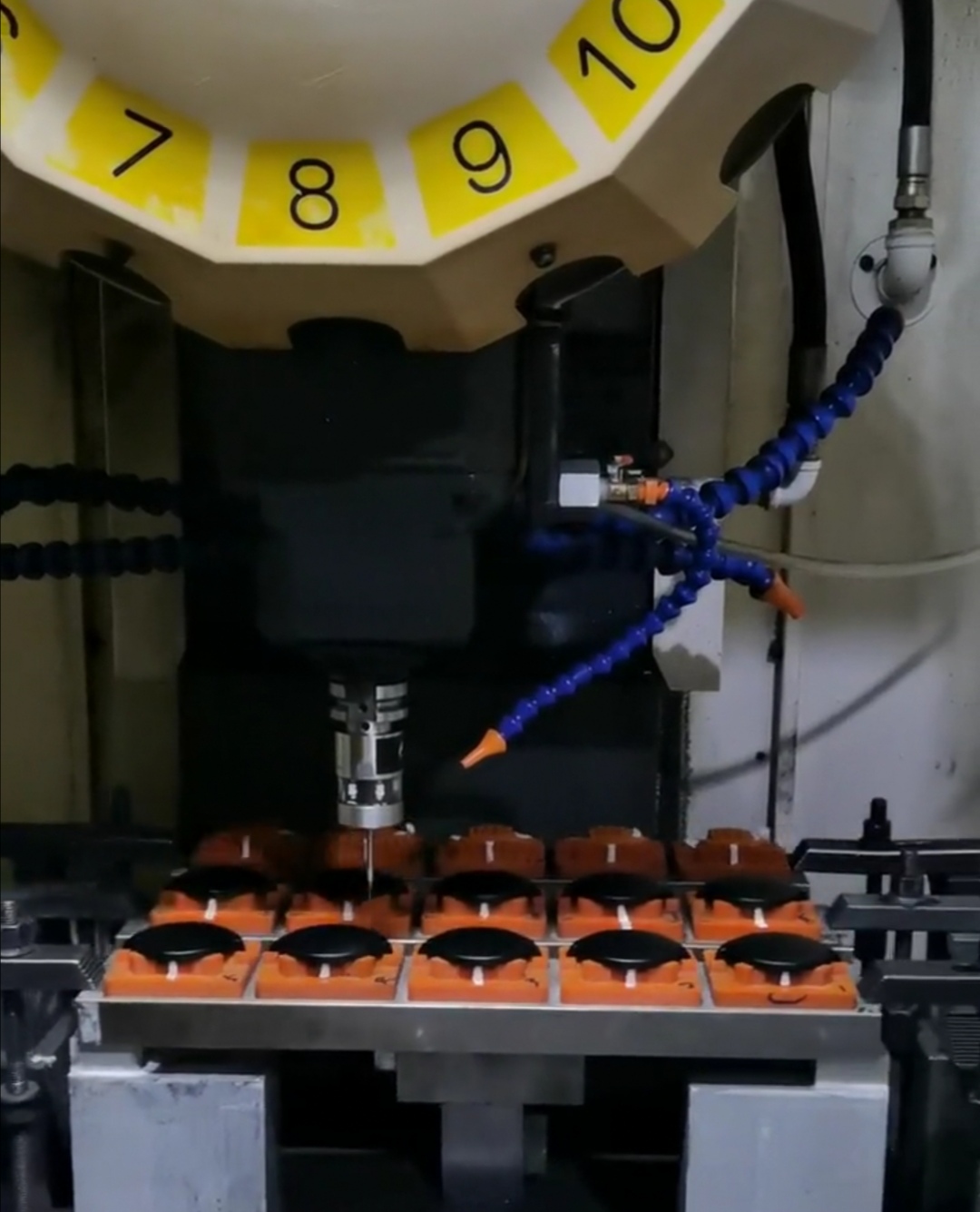

measurement the planeness , distances, angles, diameter measurement of inner holen, outside diameters, inside and outside widths on a manufactured workpiece
Marco and hardware
Software and programs:
To measure 2D dimensions, no additional software required, only program need to be written.
Silvercnc can provide macro program templates. If you have experience of using Renishaw , blum and marposs probes, you can use its programs directly. Because the programs are basically universal, just need to change a few parameters.
Many kinds of CNC controler and machine tool can be installed include: Mitsubishi, FANUC, Brothers, Siemens, Heidenhain, FAG, Haas, Mazak, Makino, DMG, Doosan and so on
Probe hardware to be confirm:
■ Confirm the type of probe according to the characteristics of the parts to be machining, choose infrared or radio transmission.
Silvercnc recommended to select infrared probe for small parts, and recommend radio probe for large cavity parts to prevent unstable signal transmission caused by obstacles.
■ Confirm the model of the spindle in order to select the correct tool holder.
■ Confirm the form and specification of the measuring stylus
■ Confirm whether the battery is needed, because there may restrictions on the battery during international express delivery or customs clearance
For the specifications, installation manual and macro program of the probe, please go to the designated place to download or contact the sales department
